SPECIFICATIONS

Alarm Type: Vehicle Backup Cameras,ACCESSORIES,Front

Certification: CE

Choice: yes

Guiding Line: Yes

Hign-concerned Chemical: None

Length of Video Cable: 10M,6M

Lens Material: Glass

Material: Stainless Steel

Shell Material: Stainless Steel

Viewing Angle : 140°

Wire or Wireless: Wire

Note:

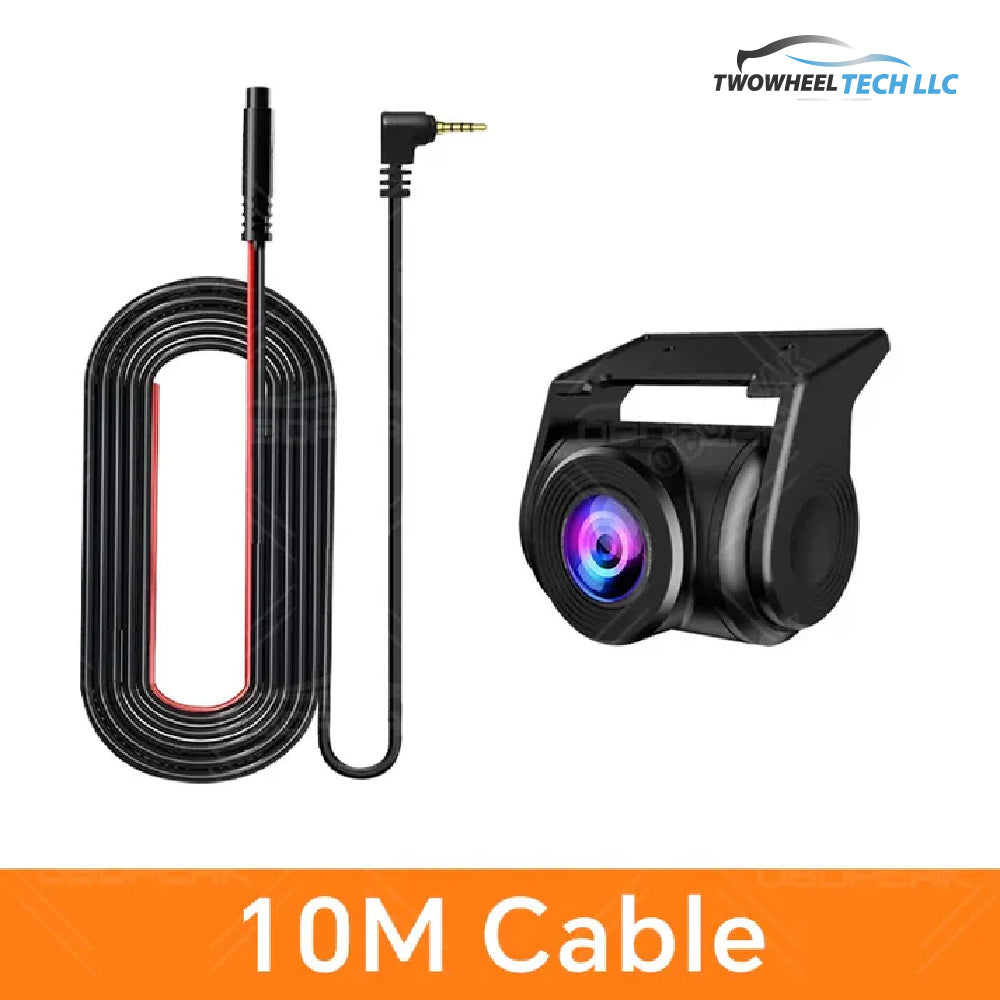

The review camera includes cable and camera, and it is 4PIN

Suitable for OBDPEAK dash cam or dash cam. Regarding support for 1080P rear camera
Unique design that can be installed both front and rear

Adapted models: OBDPEAK K2/K2 PRO/K4/K60 Pro/K8/K8s/K8 Pro/T30/K50/D80/A8/H330 [not supporting T20/K3]

+Other rear camera parameters are 4Pin1080P dash cam

Car DVD not supported

Attention:

The 6M/10M cable does not have a voltage control chip and is only suitable for vehicles with a voltage of 12V

The 15M cable is equipped with a voltage control chip, which can reduce the 24V voltage to 12V and then transmit the signal to the Dash cam

Features:

1. Suitable for streaming rearview mirror driving recorder
2. Imported 140 wide angle lens, waterproof, dust-proof, anti-fog, shock-proof.
3. Imported chips CCD reversing track, picture clarity, stability, good night vision effect.
4. it not need path box, not need CANBUS or OBD interfaces, built-in reversing Tracks module.
5. Wide Angle, image recognition technology, precise trajectory reversing, the first leading technology.
6.1080P supports super night vision function, even if there is no light, it is still clearly visible

Specifications:

*Light perception area of 3.584mm * 2.688mm
*Gamma coefficient 0.45
*Lens angle lens angle: Level: 135° / Diagonal 170°
*White balance: auto
*Waterproof grade : IP67 / 68
*Power supply : DC 12V
*Video Cable: About 6 Meters Or 10 Meters


Display effect

The following pictures were taken 100% truthfully. The left side was taken with a mobile phone, and the right side is equipped with an OBDPEAK Dash screen display, which shows the display effect of the rear camera under different ambient brightness levels.The photo has not undergone any color adjustment or beautification.If you are satisfied with this display effect, please purchase it. Thank you

Voltage reducing chip

The 15M cable is equipped with a voltage control chip, which can reduce the high voltage of the car to around 12V and improve the stability of the camera on the Dash cam

Car Cable Selection

The 10M line is suitable for household cars or small trucks around 12V

The 15M line is suitable for large trucks around 24V

Please choose the appropriate cable based on the length and voltage of your vehicle. For 24V vehicles, it is necessary to choose a 15M cable. Using a 10M cable may cause damage to the Dash cam motherboard and result in a blue screen image

Free Shipping

The shipping time for orders is 24 to 48 hours for processing, and you can expect delivery within 7 to 14 days. Returns are accepted within 30 days.

1. Stick it on your dashboard with the stand or to your windshield with the suction cup (both included).

2. Plug the cable into your cigarette lighter, 12V port, or car charger - works in every car

3. Pair the screen with your phone via Bluetooth or connect using the cable -
works with both Apple & Android

4. Use the built-in speaker, or connect to your car radio via the included AUX
cable, Bluetooth, or the built-in FM transmitter.

And that's all! You have Apple CarPlay & Android Auto in your car in less than 5
minutes
